Medical Imaging in Medplum - DICOM & DICOMweb Beta

· 7 min read
Cody Ebberson
Cody Ebberson
Medplum Core Team

Medical imaging has been the part of the patient record that lives somewhere else. A digital health company builds its charting, ordering, and results workflows on FHIR, and then imaging arrives and the answer is a separate PACS, a separate login, a separate access control model, and a link out to a viewer that knows nothing about the rest of the chart.

Today we are releasing DICOM and DICOMweb support in Beta. A modality on a hospital network can send a study to Medplum over the DICOM network protocol, the study is stored as ordinary Medplum resources under the project's existing access policies, and a DICOMweb viewer can read it back out — with no image server in the middle.

What's in the box​

Three things arrived together, because none of them is useful alone.

The DICOMweb service. Medplum serves DICOMweb at /dicomweb on the same host as the FHIR API, with the same OAuth2 bearer tokens and the same access policies. STOW-RS accepts stored instances. QIDO-RS and WADO-RS serve the study list, series metadata, and pixel frames that a viewer needs.

DIMSE support in the Medplum Agent. Imaging equipment does not speak DICOMweb. It speaks DIMSE — the DICOM message service over raw TCP — on a hospital network with no route to the internet. The Medplum Agent already runs inside that firewall for HL7 v2 and ASTM traffic; it now also presents itself to a modality as a DICOM Storage SCP, accepts C-STORE, and forwards each instance to Medplum over an outbound HTTPS connection. No inbound firewall rule.

A CLI command. medplum dicomweb stow uploads a file through STOW-RS, so you can get imaging into a project in one command without standing up any infrastructure to try it.

npm install --global @medplum/cli
medplum login
medplum dicomweb stow MRBRAIN.DCM

Why we modeled DICOM natively​

The obvious approach is to translate imaging into FHIR at the door — map each incoming study onto an ImagingStudy and be done. We didn't, and the reason is worth explaining, because it is the decision that determines what you can build on this.

DICOM and FHIR disagree about what an image is. A DICOM instance carries hundreds of attributes — acquisition geometry, windowing defaults, pixel spacing, frame-of-reference UIDs, the private tags a particular scanner vendor uses to record its own acquisition parameters. FHIR's ImagingStudy models the fraction of that a clinical workflow needs to reference a study; it was never meant to carry enough to render one. Translate at ingest and you throw away exactly the attributes a viewer needs, and you cannot get them back.

So Medplum stores the DICOM hierarchy directly, as three resource types that mirror it:

  • DicomStudy — study UID, accession number, study date, patient demographics
  • DicomSeries — series UID, modality, series description
  • DicomInstance — instance attributes, the full DICOM JSON metadata, and references to the stored binaries

The original .dcm file is preserved unmodified as a Binary, and a background worker extracts pixel data into one Binary per frame. Nothing is lossy, and a DICOMweb response can be reconstructed faithfully from what was stored.

What you get in exchange for keeping the DICOM shape is that these are still Medplum resources. They are searchable with the FHIR search API, readable through the TypeScript SDK, governed by access policies, audited like everything else, and able to trigger Bots on create or update.

const studies = await medplum.searchResources('DicomStudy', {
  'accession-number': 'A12345',
});

That last one is the interesting part. A Bot that fires when a DicomStudy is created is where the imaging pipeline meets the rest of your application — reconciling a study against an order, matching the DICOM Patient ID to your MRN identifier system, kicking off an AI inference job, notifying a radiologist's worklist. The imaging data and the workflow logic are finally in the same system.

The path from a scanner to a browser​

Adding a DICOM channel to an Agent takes one Endpoint whose address names the scheme, the port, and where instances should land:

dicom://0.0.0.0:8104?storage=dicomweb

storage=dicomweb routes each received instance to the STOW-RS endpoint, which files it into the DICOM resources. The default, storage=binary, uploads a FHIR Binary instead — that is what DICOM channels did before this release, and it keeps working unchanged. Either way, a Bot is notified with the association's AE titles and the instance's DICOM JSON metadata, minus the pixel data.

On the way out, OHIF reads studies directly from /dicomweb. Medplum's hosted cloud is preconfigured with an OHIF instance at viewer.medplum.com, so there is nothing to deploy — sign in and your studies are there. It is the same server, the same tokens, and the same access policies as the FHIR API: a user who cannot read a DicomStudy cannot open it in the viewer either. There is no second authorization model to keep in sync, which is the failure mode most imaging integrations eventually produce.

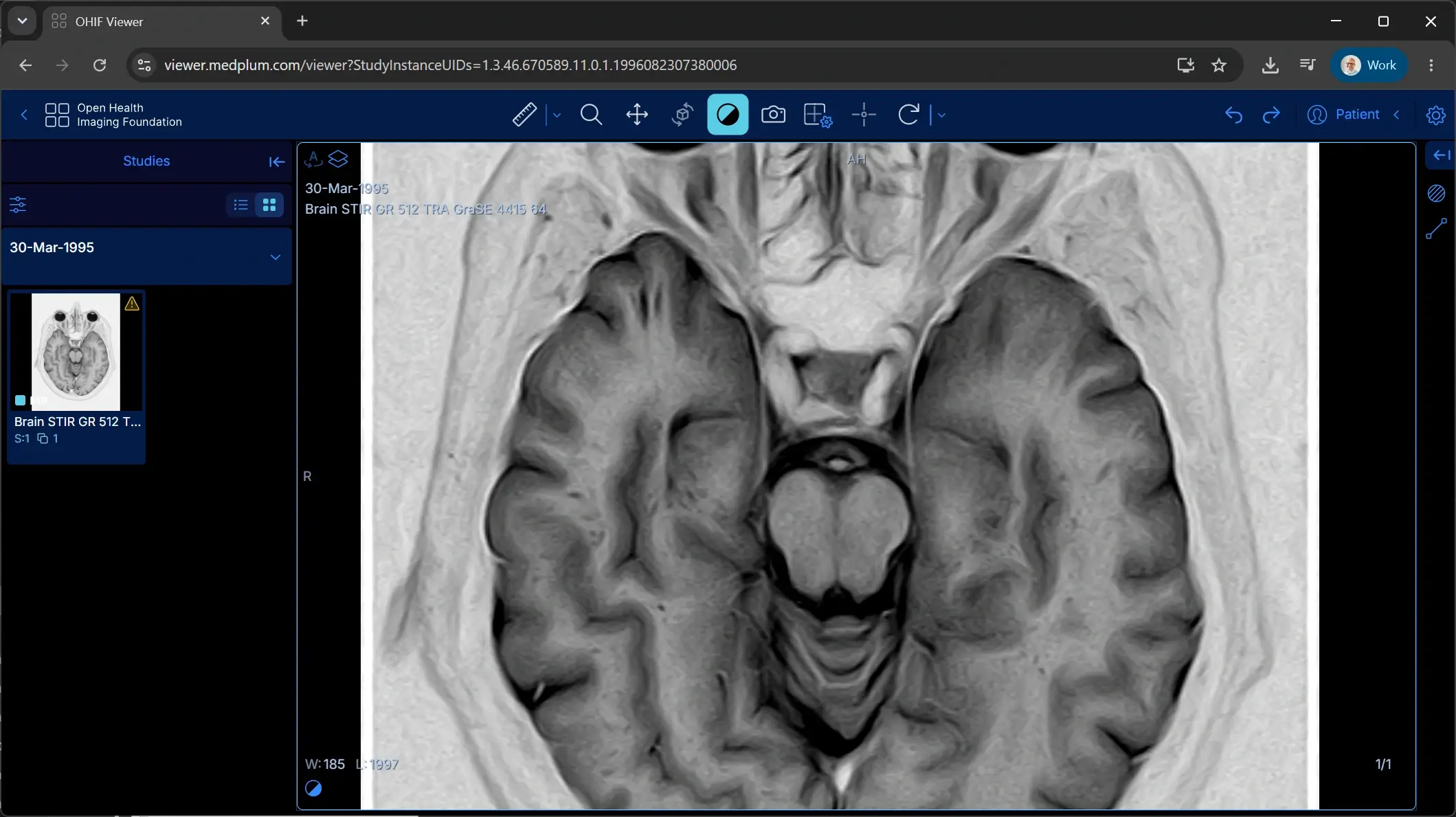

An MR brain study stored in Medplum, displayed in the OHIF Viewer at viewer.medplum.com

What's next​

This is a Beta release: the end-to-end path works, the resource model is stable enough to build against, and breaking changes will come with notice and a migration path where practical.

Linking imaging into the chart is the next thing we are building — a DicomStudy that references a Patient directly, so a study is reachable by navigating from the record rather than by DICOM Patient ID. After that, richer QIDO-RS querying and broader coverage of the DICOMweb retrieval surface.

The documentation describes the implemented API in detail if you want to see exactly what you can build on today.

Try it​

The fastest path is three commands and a browser:

  1. medplum dicomweb stow MRBRAIN.DCM — store a file
  2. Open viewer.medplum.com and sign in
  3. Open the study

Then, when you are ready for real equipment, add a DICOM channel to an Agent and send a C-ECHO from the modality.

Tell us what you need​

Which parts of this we build out next depends on what people actually hit. If QIDO filtering is blocking a migration, if you need C-MOVE to pull from an existing archive, if chart linkage is the thing standing between you and a pilot — that is exactly what we want to hear.

Reach us at hello@medplum.com, open a GitHub issue, or find us in Discord.
